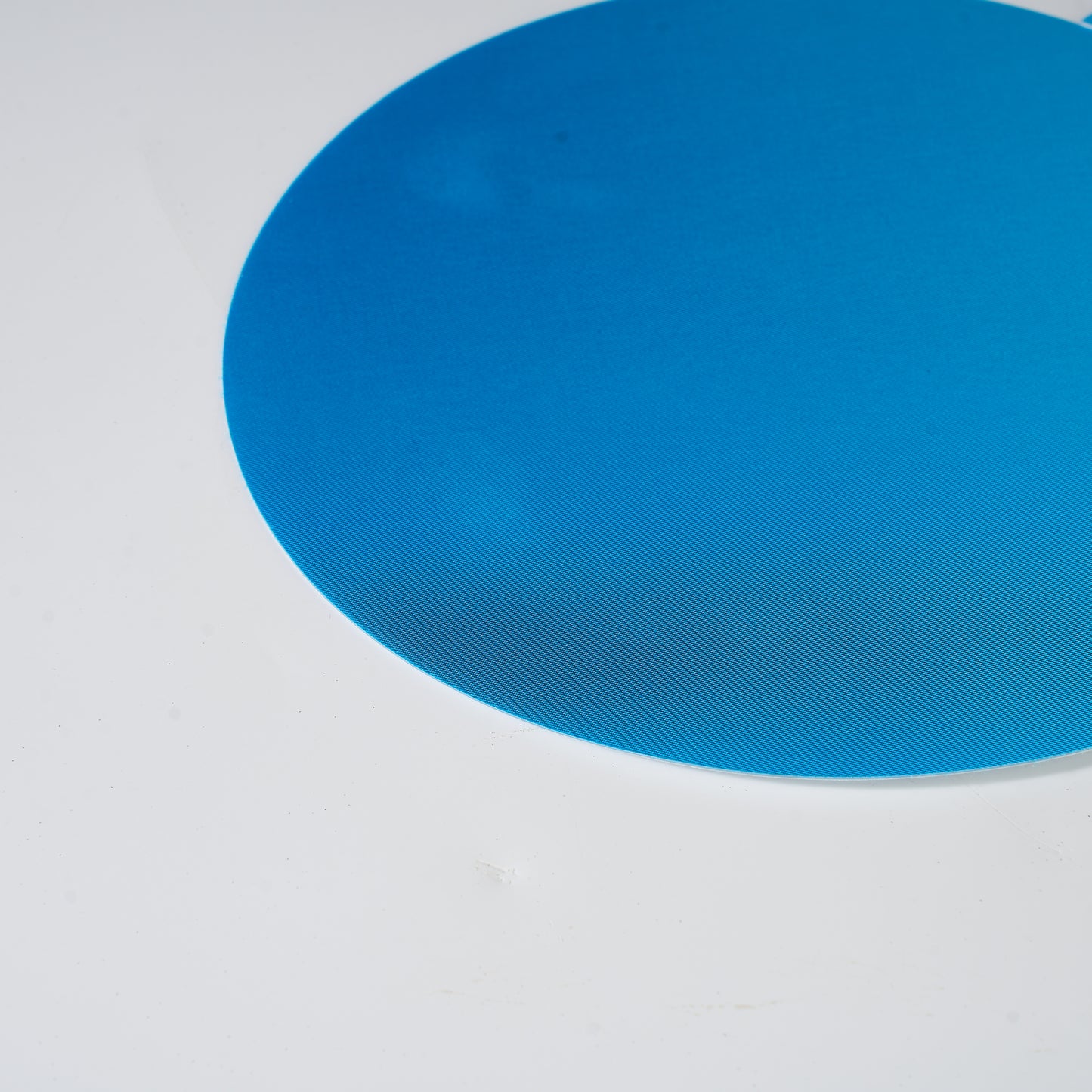

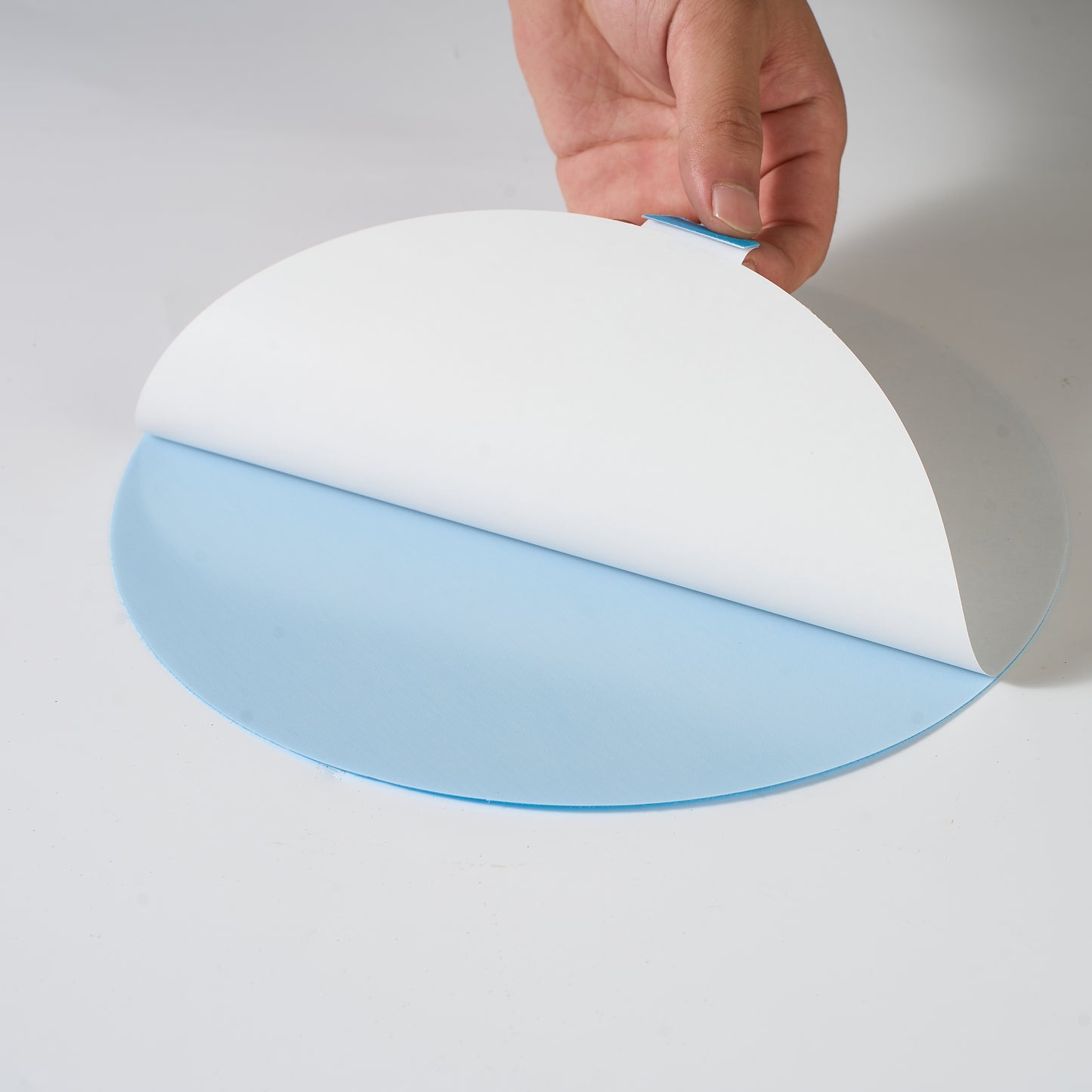

Polishing Cloth
Polishing Cloth
Polishing is the process of removing surface damage caused by grinding, resulting in a bright surface that is easy to observe under the microscope.
Common polishing consumables include polishing cloth, fluid, powder, and lubricant.

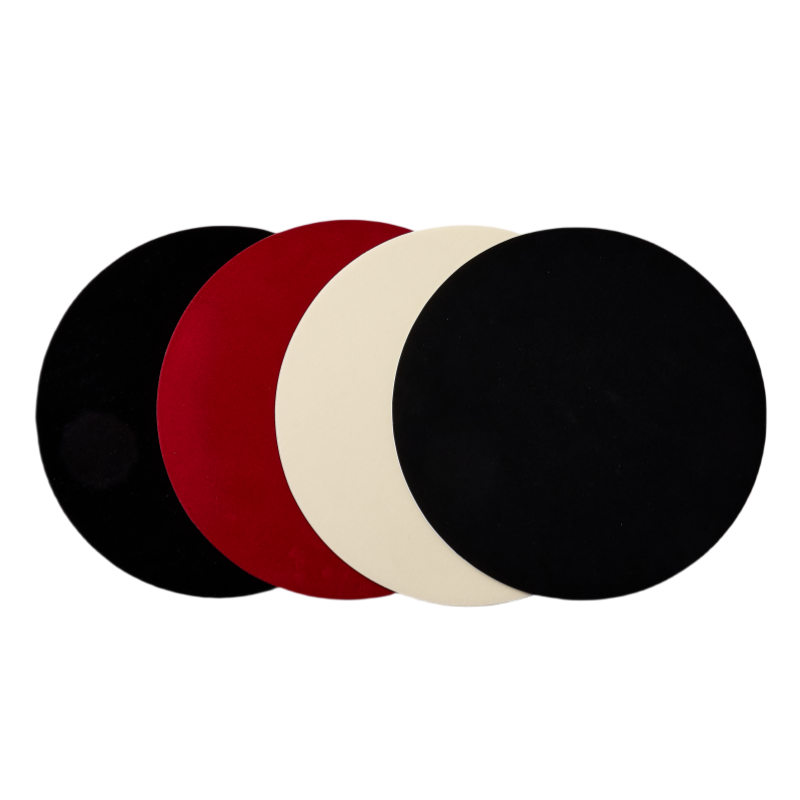

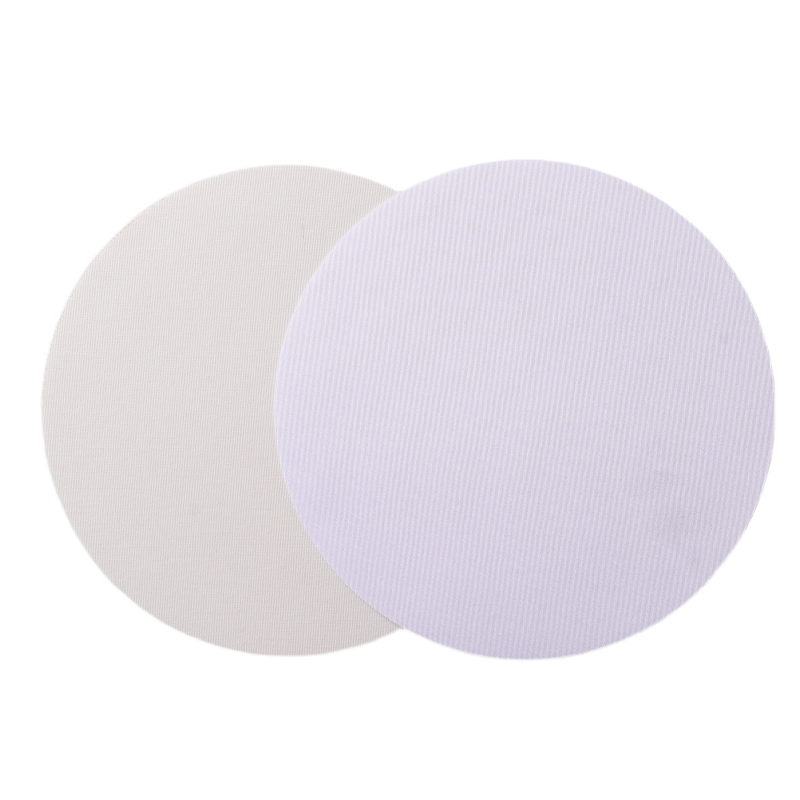

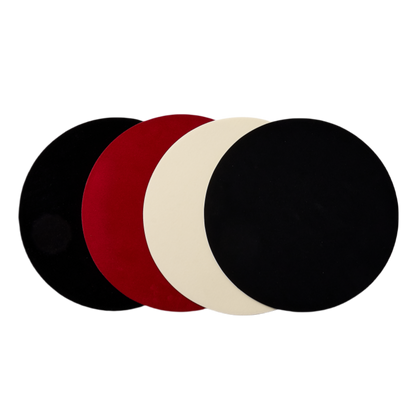

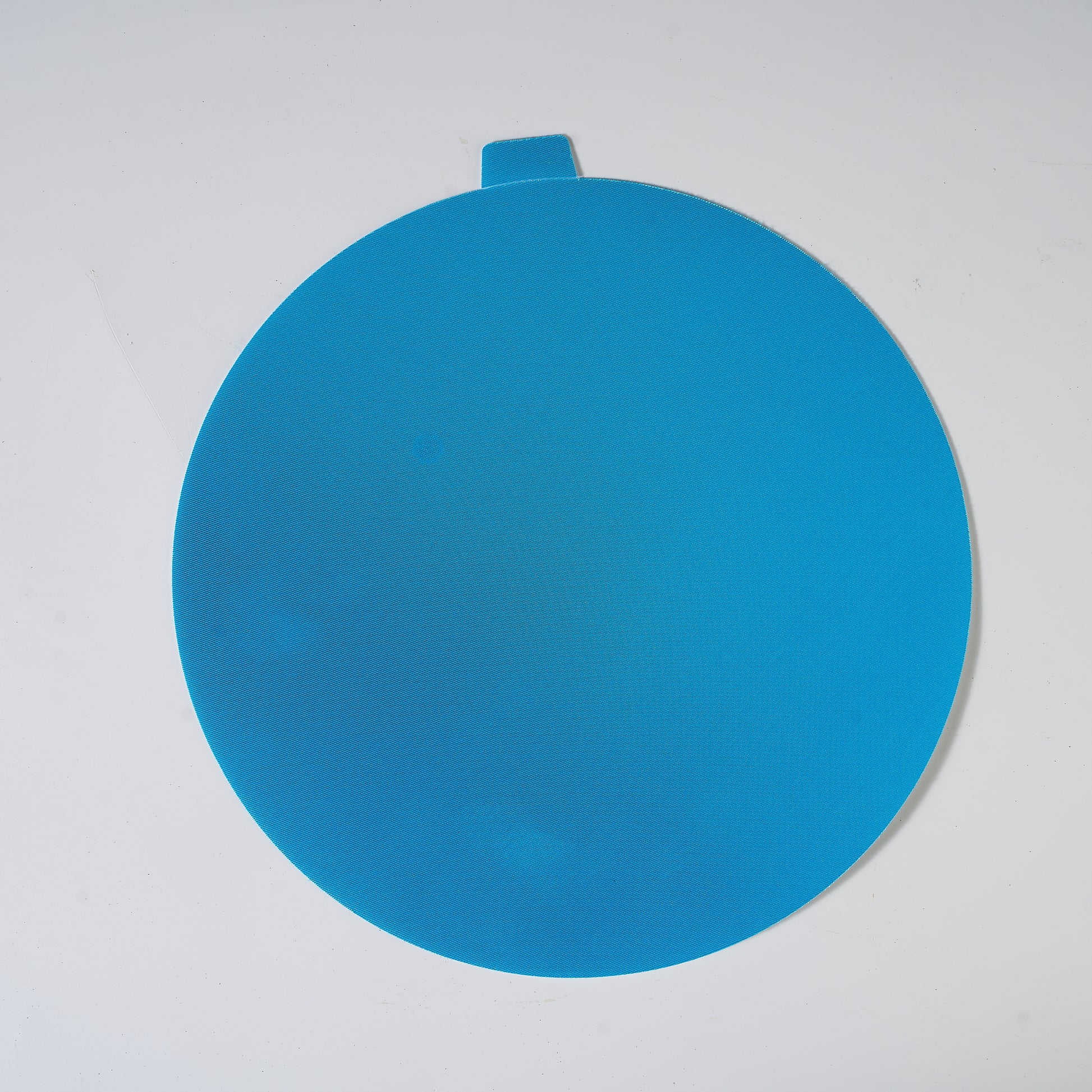

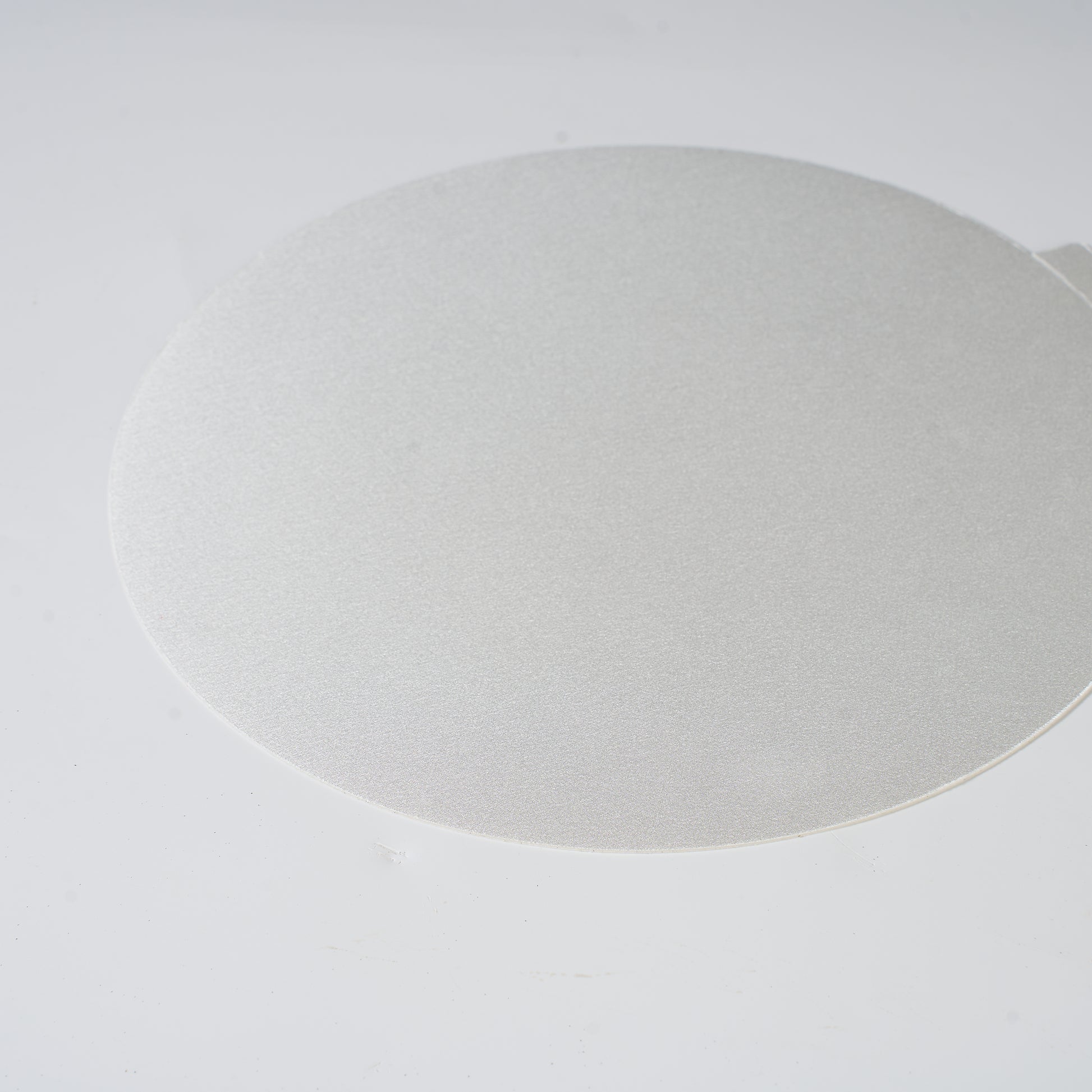

VICFORM has prepared a variety of polishing cloths for you, using precision imitation fabrics with high abrasive retention rate and long-lasting durability; Paired with a high-strength and high toughness isolation layer, it is not easy to deform or wrinkle, and can be used in various application scenarios with polishing media.
Polishing cloth: 10pcs/package
Iron plate: 5pcs/package
| Model | Description | Suitable particle size | Particle type | Material | Backing | 200mm | 230mm | 250mm | 300mm | |
| Rough Polishing | PC-PAD | Hard weave &no lint | ≥6um | diamond | Rough polishing for ferrous metals, hard materials such as thermal spraying |
glue | 43-010-200 | 43-010-230 | 43-010-250 | 43-010-300 |
| iron plate | 43-011-200 | 43-011-230 | 43-011-250 | 43-011-300 | ||||||
| PC-PAN | Hard weave | ≥6um | diamond | Rough polishing for ceramic, carbide, glass, metal matrix, composite materials |
glue | 43-020-200 | 43-020-230 | 43-020-250 | 43-020-300 | |
| iron plate | 43-021-200 | 43-021-230 | 43-021-250 | 43-021-300 | ||||||
| Medium Polishing | PC-DUR | Satin woven natural silk | 9-1um | diamond | Medium polishing for ferrous metals, non-ferrous metals, coatings, plastics, etc; fine polishing for soft material | glue | 43-030-200 | 43-030-230 | 43-030-250 | 43-030-300 |
| iron plate | 43-031-200 | 43-031-230 | 43-031-250 | 43-031-300 | ||||||

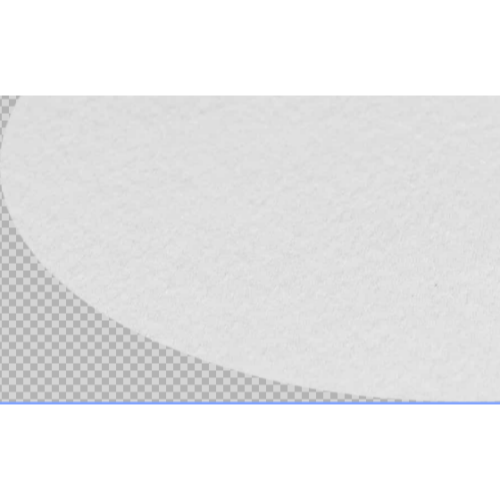

| PC-DAC | Satin woven fiber | 6-1um | diamond | Medium polishing for all the materials | glue | 43-040-200 | 43-040-230 | 43-040-250 | 43-040-300 | |
| iron plate | 43-041-200 | 43-041-230 | 43-041-250 | 43-041-300 | ||||||
| PC-MOL | Wool fabric | 6-3um | diamond | Medium polishing for ferrous metals, non-ferrous metals and polymers etc | glue | 43-050-200 | 43-050-230 | 43-050-250 | 43-050-300 | |
| iron plate | 43-051-200 | 43-051-230 | 43-051-250 | 43-051-300 | ||||||

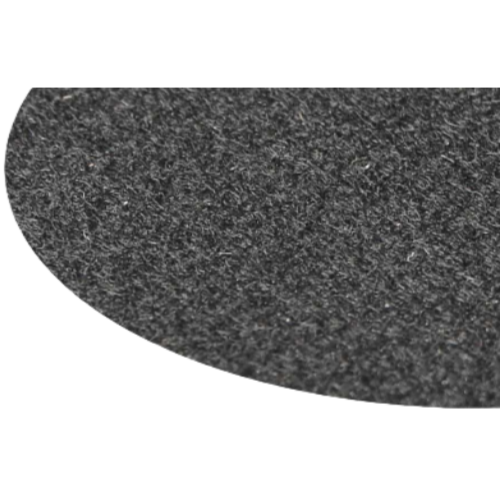

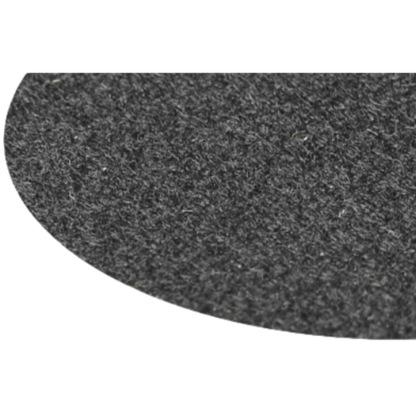

| PC-PLUS | Synthetic wool | 6-1um | diamond | Medium polishing for ferrous metals and alloy steels;rough polishing for non-ferrous metals | glue | 43-060-200 | 43-060-230 | 43-060-250 | 43-060-300 | |
| iron plate | 43-061-200 | 43-061-230 | 43-061-250 | 43-061-300 | ||||||
| PC-SAT | Polyester fabric | 3-0.05um | diamond /alumina |
Fine polishing for soft metals;rough polishing for hard metals | glue | 43-070-200 | 43-070-230 | 43-070-250 | 43-070-300 | |
| iron plate | 43-071-200 | 43-071-230 | 43-071-250 | 43-071-300 | ||||||
| Fine Polishing | PC-FLOC | Synthetic velvet | 3-1um | diamond | Fine polishing for general materials | glue | 43-080-200 | 43-080-230 | 43-080-250 | 43-080-300 |
| iron plate | 43-081-200 | 43-081-230 | 43-081-250 | 43-081-300 | ||||||

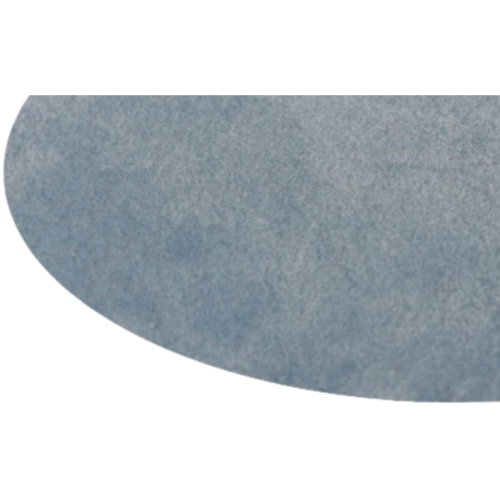

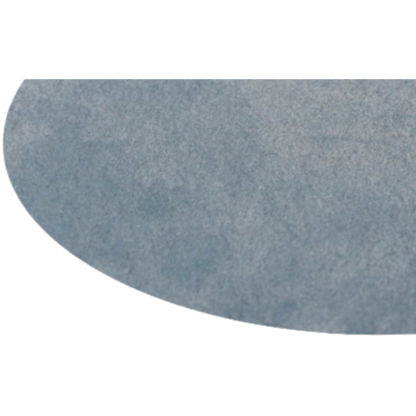

| PC-NAT | Medium hard short fiber flocking | ≤3um | diamond /alumina |
Fine polishing for hard materials | glue | 43-090-200 | 43-090-230 | 43-090-250 | 43-090-300 | |
| iron plate | 43-091-200 | 43-091-230 | 43-091-250 | 43-091-300 | ||||||

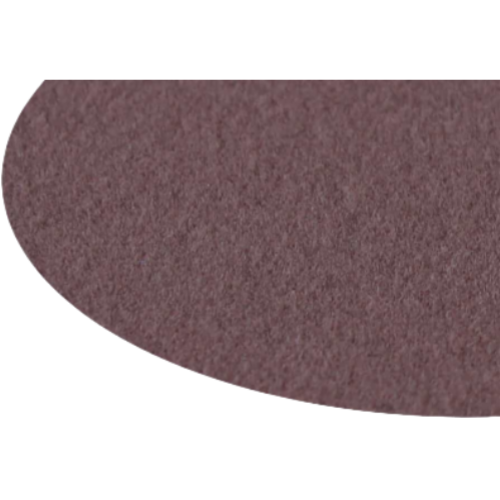

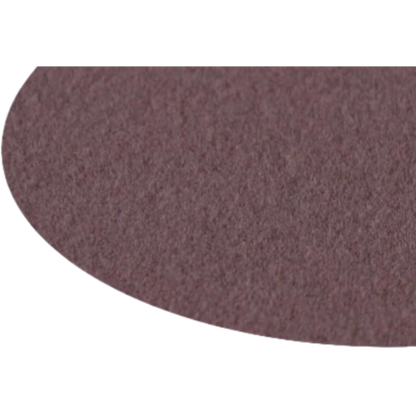

| PC-PLOC | Medium fiber flocking | ≤3um | diamond /alumina |
Fine polishing for soft materials | glue | 43-100-200 | 43-100-230 | 43-100-250 | 43-100-300 | |
| iron plate | 43-101-200 | 43-101-230 | 43-101-250 | 43-101-300 | ||||||
| PC-NAP | Synthetic staple fiber flocking | ≤1um | diamond /alumina |
Fine polishing for all materials | glue | 43-110-200 | 43-110-230 | 43-110-250 | 43-110-300 | |
| iron plate | 43-111-200 | 43-111-230 | 43-111-250 | 43-111-300 | ||||||
| PC-CHEM | Polychloroprene rubber | ≤1um | oxide | Fine polishing for all materials | glue | 43-120-200 | 43-120-230 | 43-120-250 | 43-120-300 | |
| iron plate | 43-121-200 | 43-121-230 | 43-121-250 | 43-121-300 |
