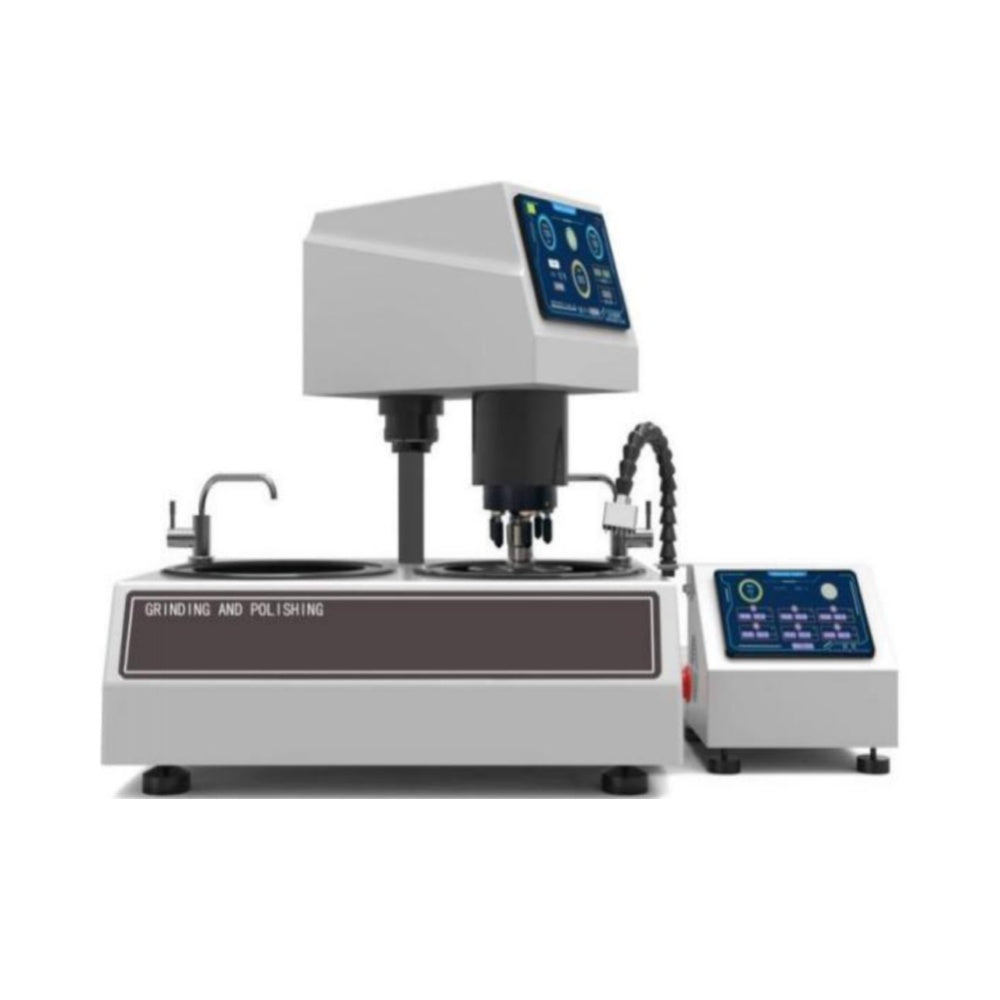

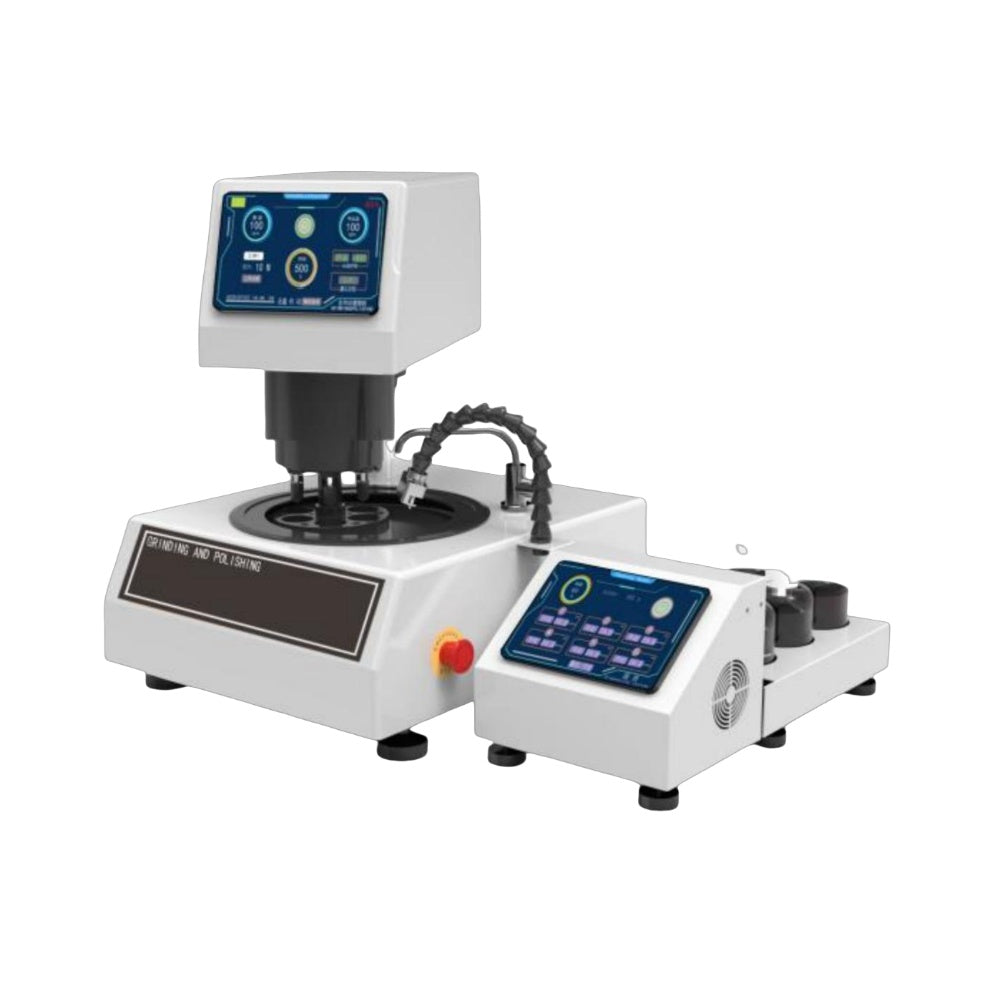

Fully Automatic Grinding and Polishing Machine (Single Force+Central Force)
Fully Automatic Grinding and Polishing Machine (Single Force+Central Force)
The Vpol automatic series are advanced grinder-polishers, with offer of twin platens to accomadate a greater capacity for high volume environments. The platens are independently controlled and can also work simultaneously.The automatic series all have the premium features like programmable touchscreen . With method storage,users can achieve repeatability and fast setup. Vpol-300AS,is of an enhanced motor and larger platen size to accomodate larger samples. The dispensing system can be optional.
|
Model |
Vpol-250 AS |
Vpol-300 AS |
Vpol-250 AT |
Vpol-300 AT |
|
Platen Count |
Single |
Twin |
||
|
Platen Sizes |
10in(250mm) |
12in(305mm) |
10in(250mm) |
12in(305mm) |
|
Controls |
Touch screen |
|||
|
Platen Speed |
0-1000r/min |
|||
|
Platen Rotation |
Counterclockwise/Clockwise |
|||
|
Specimen Size |
diameter 30mm ,6pcs |
|||
|
Single Force Max Capacity |
6 |
|||
|
Central Force Max Capacity |
6 |
|||
|
Methods Storage |
✓ |
|||
|
Rinse&Spin |
✓ |
|||
|
Dispensing System |
optional |
|||
|
Motor |
800W |
1000W |
1200W |
1800W |
|
Weight |
60KG |
80KG |
100KG |
150KG |
|
Dims(W*D*H) |
400 *600 *750mm |
550 *750*770mm |
700 *600 *750mm |
900 *750*770mm |
