Cold Mounting Resin
Cold Mounting Resin
Couldn't load pickup availability
The purpose of mounting is to protect the integrity of the edges of the material and facilitate the clamping of the sample.Mounting can be divided into two types: hot Mounting and cold Mounting.
Cold Mounting Resin
There are two types of cold mounting resins: Epoxy Resin and Acrylic Resin.
Epoxy resin has good physical adsorption capacity and low shrinkage rate, which can penetrate into the gaps and cracks of the sample.
Acrylic resin is often used in scenarios that require a short period of time.
1) Complete Product Line
There are many types of resins, and we have developed mounts with different characteristics for different scenarios. For example, a fast epoxy cold mount set that requires rapid curing; Low heat epoxy cold mount set suitable for thermosensitive specimens; High permeability epoxy cold mount set suitable for multi gap products, etc.
2) Safety and Environmental Protection
Free from harmful substances, safe and environmentally friendly, with no adverse effects on the human body during storage and use.
3) Excellent Performance
During the mounting process, it has good fluidity and adhesion to the sample, which in turn provides excellent protection for the sample; The mounted sample has high density and good resistance to chemical corrosion.
This resin has good operability and excellent fluidity. It is easy to obtain bubble-free, compact and transparent samples.

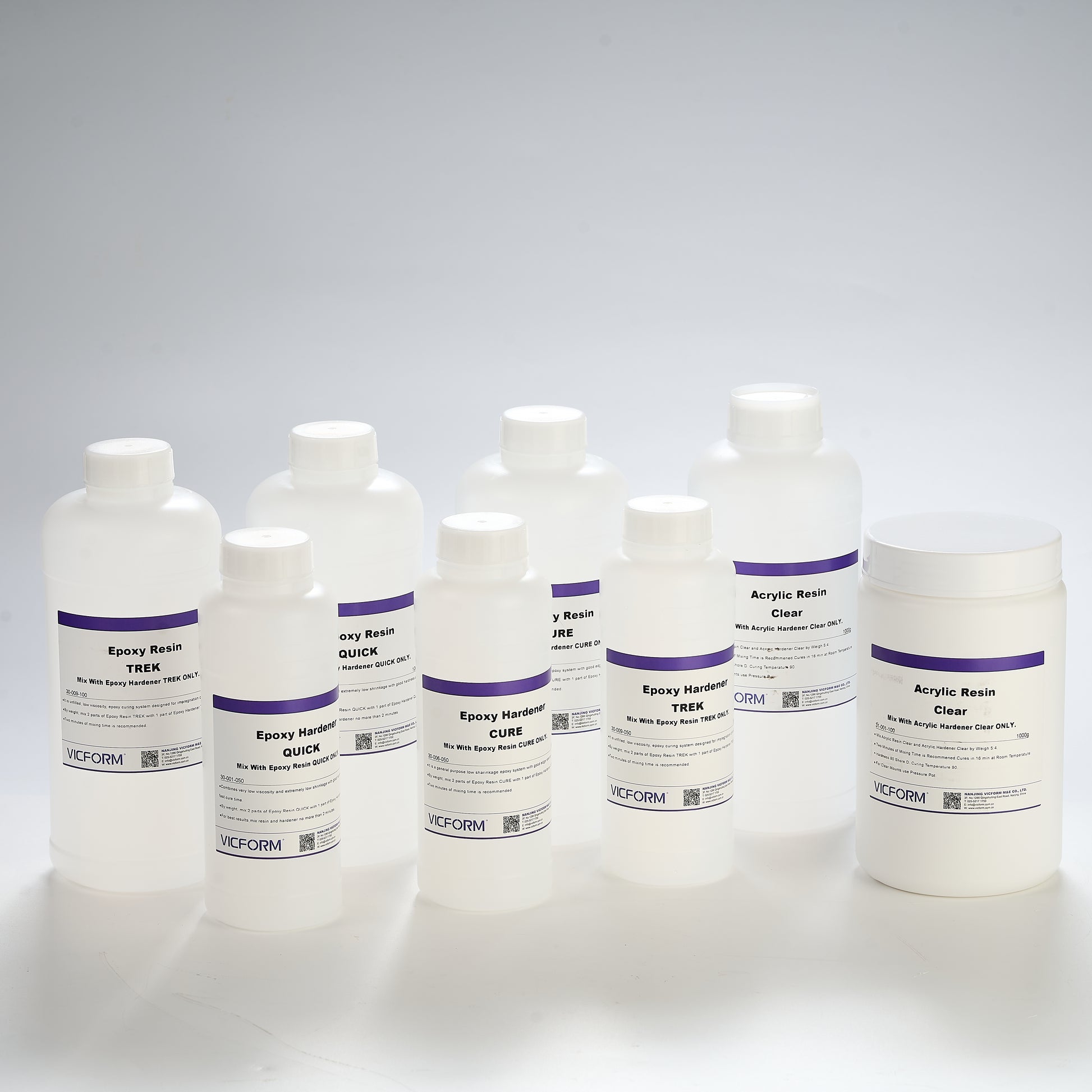

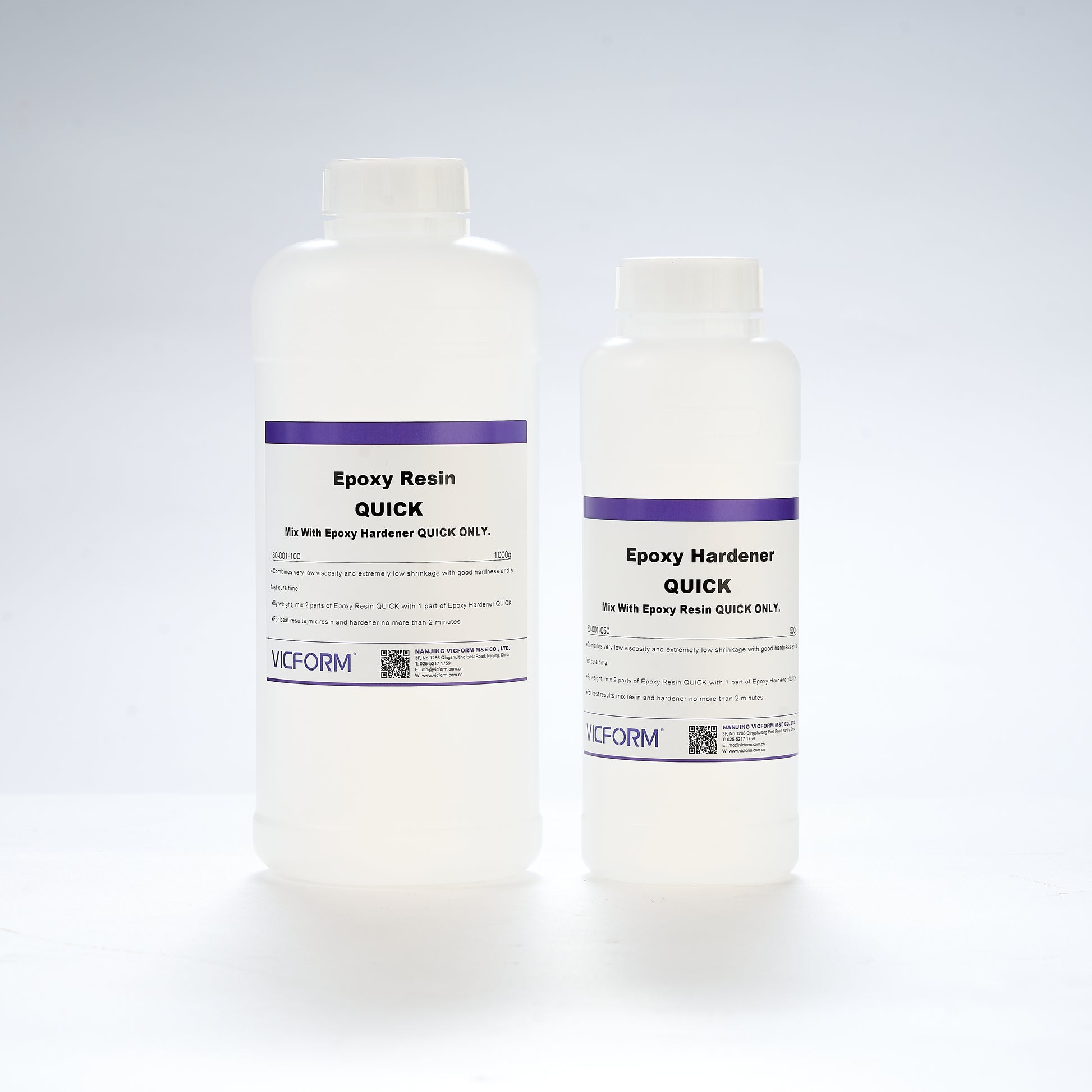

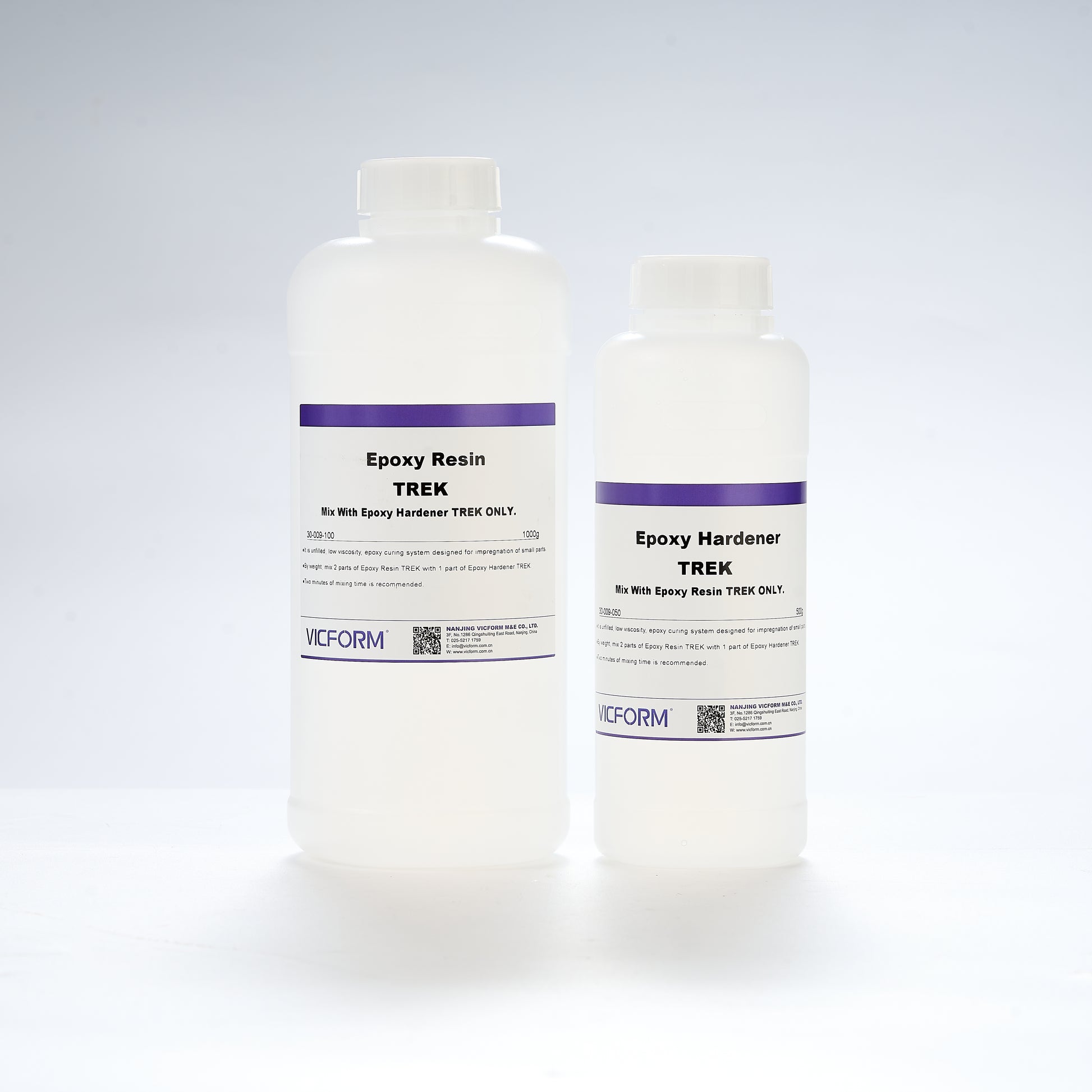

Epoxy resin set：resin 1000g/bucket, curing agent 500g/bucket
Acrylic resin set: resin 1000g/bucket, curing agent 800g/bucket
| Material | Curing time | Resin /Curing agent （Weight ratio） |
Shrinkage | Hardness （Shore D） |
Peak Temperature |
Features |
| Epoxy resin set 30-001-100 30-001-050 |
0.5-1H | 2:1 | 🌟🌟🌟🌟🌟 | 82 | 142℃ | light yellow transparent, good edge protection |
| Epoxy resin set 30-002-100 30-002-050 |
1-2H | 2:1 | 🌟🌟🌟🌟 | 80 | 120℃ | transparent, excellent adhesion |
| Epoxy resin set 30-004-100 30-004-050 |
2-4H | 2:1 | 🌟🌟🌟🌟 | 78 | 95℃ | high transparency general use |
| Epoxy resin set 30-006-100 30-006-050 |
4-6H | 2:1 | 🌟🌟🌟🌟 | 78 | 85℃ | high transparency low viscosity |
| Epoxy resin set 30-008-100 30-008-050 |
6-8H | 2:1 | 🌟🌟🌟🌟 | 78 | 60℃ | high transparency good permeability |
| Epoxy resin set 30-012-100 30-012-050 |
10-12H | 2:1 | 🌟🌟🌟🌟 | 80 | 45℃ | high transparency low heat generation |
| Acrylic resin set 31-001-100 31-001-080 |
10-15min | 1:0.8 | 🌟🌟🌟🌟🌟 | 80 | 90℃ | clear and transparent |
| Acrylic resin set 31-002-100 31-002-080 |
10-15min | 1:0.8 | 🌟🌟🌟🌟🌟 | 82 | 90℃ | translucent |
| Acrylic resin set 31-003-100 31-003-080 |
10-15min | 1:0.8 | 🌟🌟🌟🌟🌟 | 82 | 90℃ | conductive, bronze |
| Fast curing 32-001-100 |
1-2min | / | 🌟🌟🌟🌟🌟 | 78 | 85℃ | transparent |
| Fast curing 32-002-100 |
1-2min | / | 🌟🌟🌟🌟🌟 | 80 | 85℃ | transparent, antistatic |
