Abrasive Sandpaper with Adhesive Backing for Grinding
Abrasive Sandpaper with Adhesive Backing for Grinding

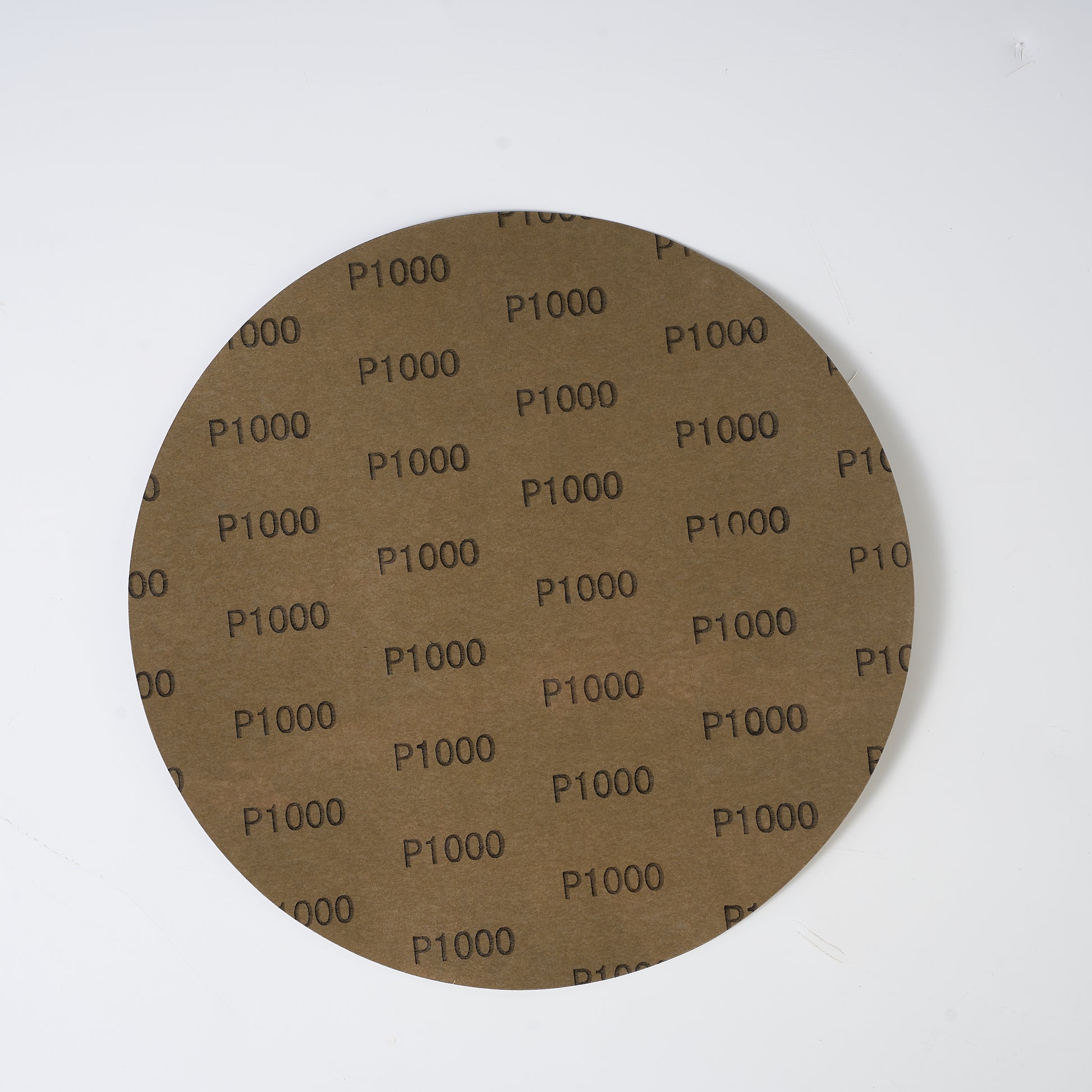

Abrasive sandpaper is a traditional metallographic consumable used in the process of grinding the sample to the inspected part and meanwhile gradually eliminating the deformation layer.

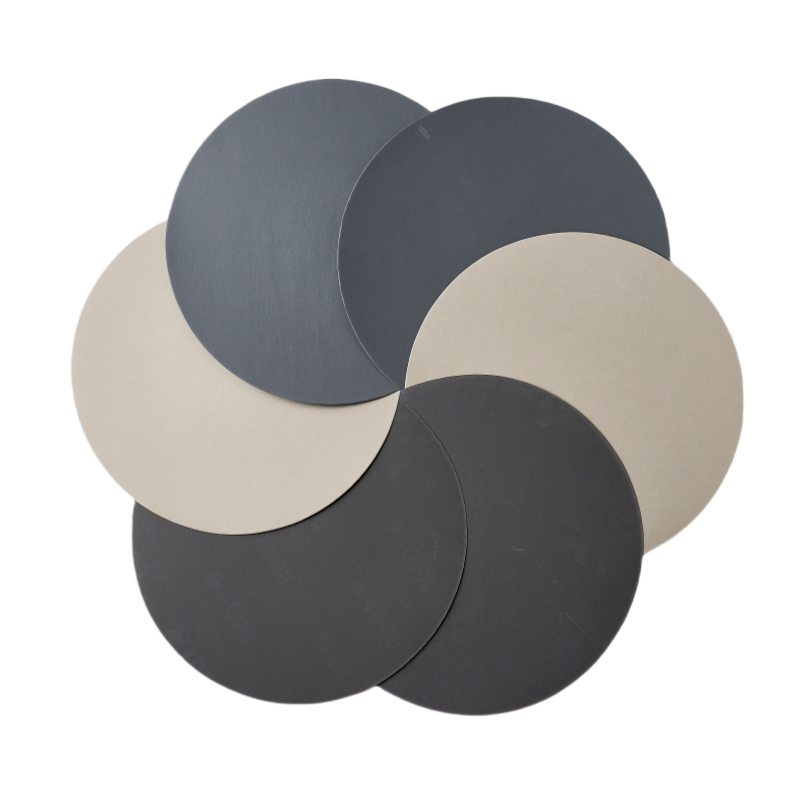

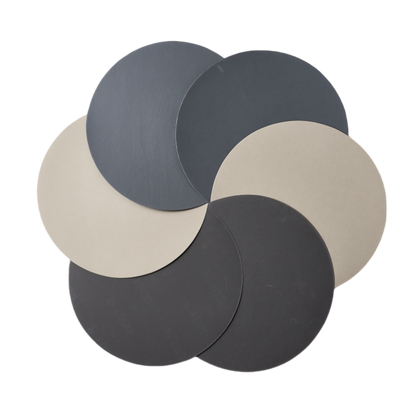

Vicform has a full range of abrasive sandpaper types to meet the needs of the entire process from coarse grinding to fine grinding.
The features are as following:
*Use of silicon carbide as abrasives and strictly controlled particle size classification of the abrasives ensures excellent grinding efficiency. The grinding time is short and the deformation layer is more uniform.
*The leading technology of planting sand makes the abrasive paper more durable.

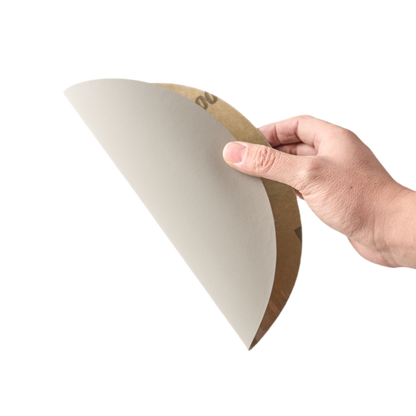

*Imported waterproof latex paper is used to ensure that the abrasive sandpaper has excellent water resistance and warping. While using it for water grinding, the curling degree is minimized in the natural state. This can ensure a better situation when the pattern and the abrasive come into contact.

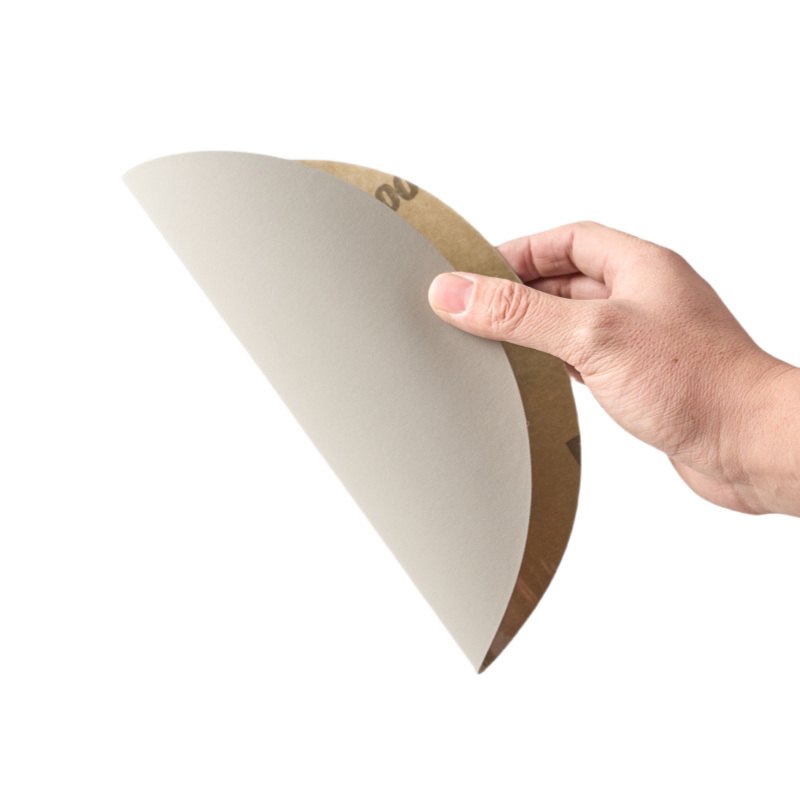

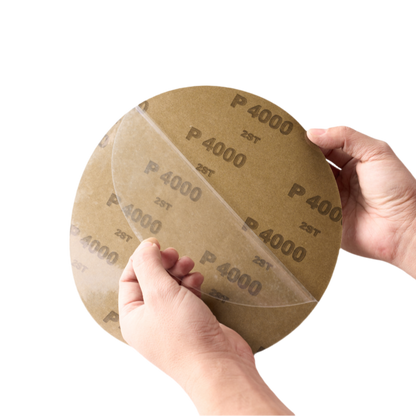

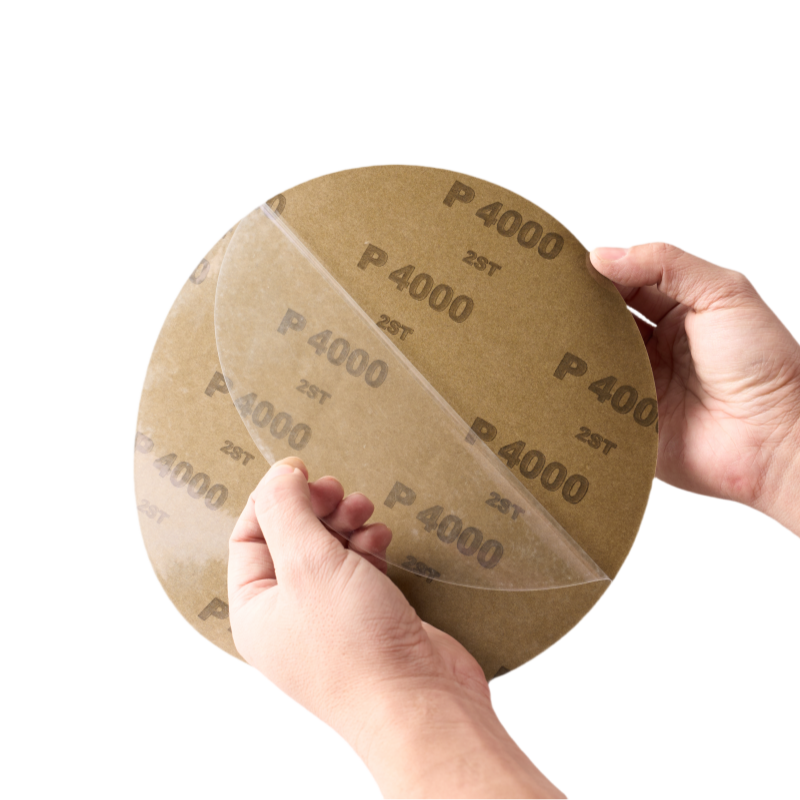

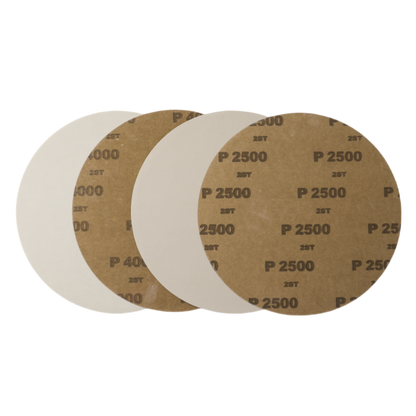

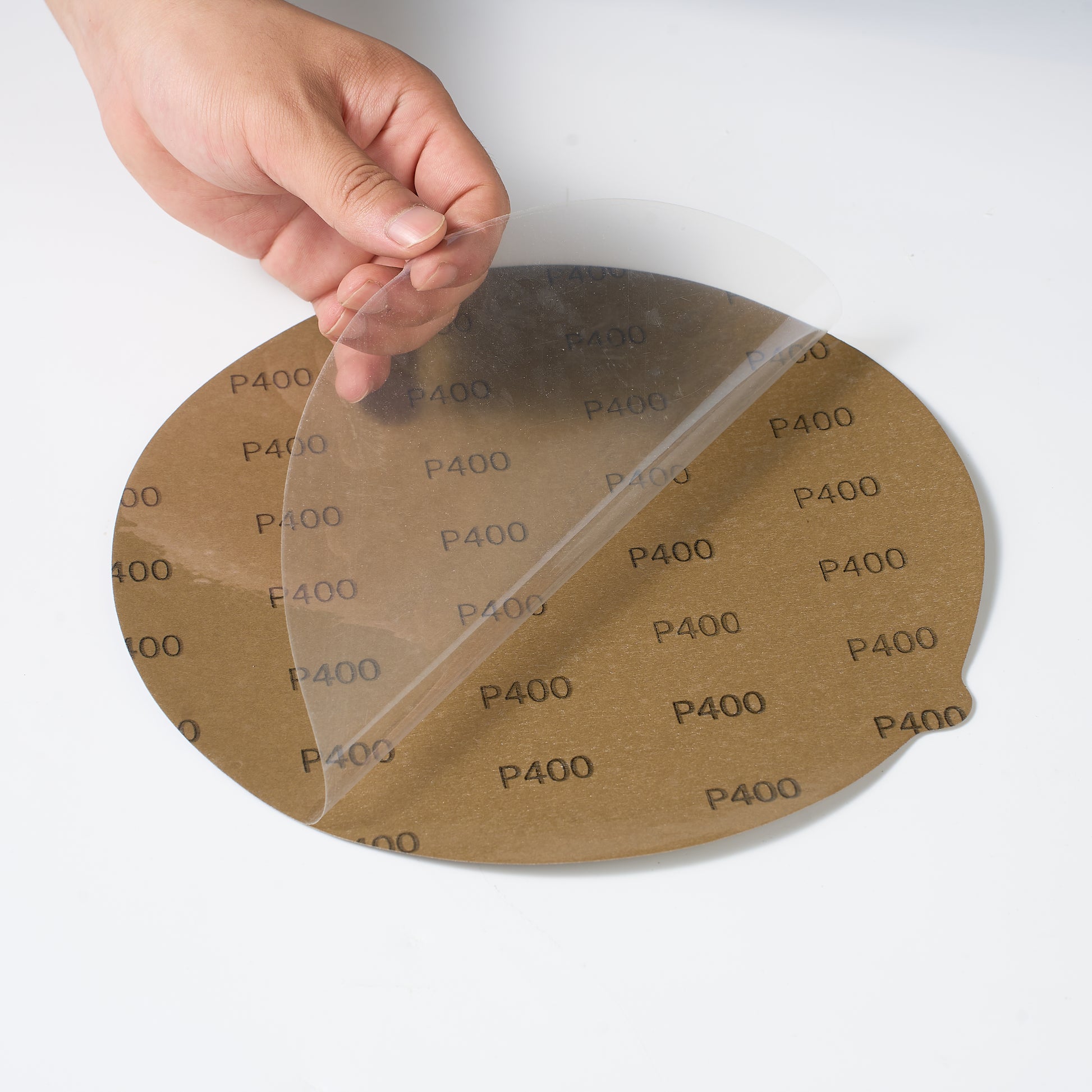

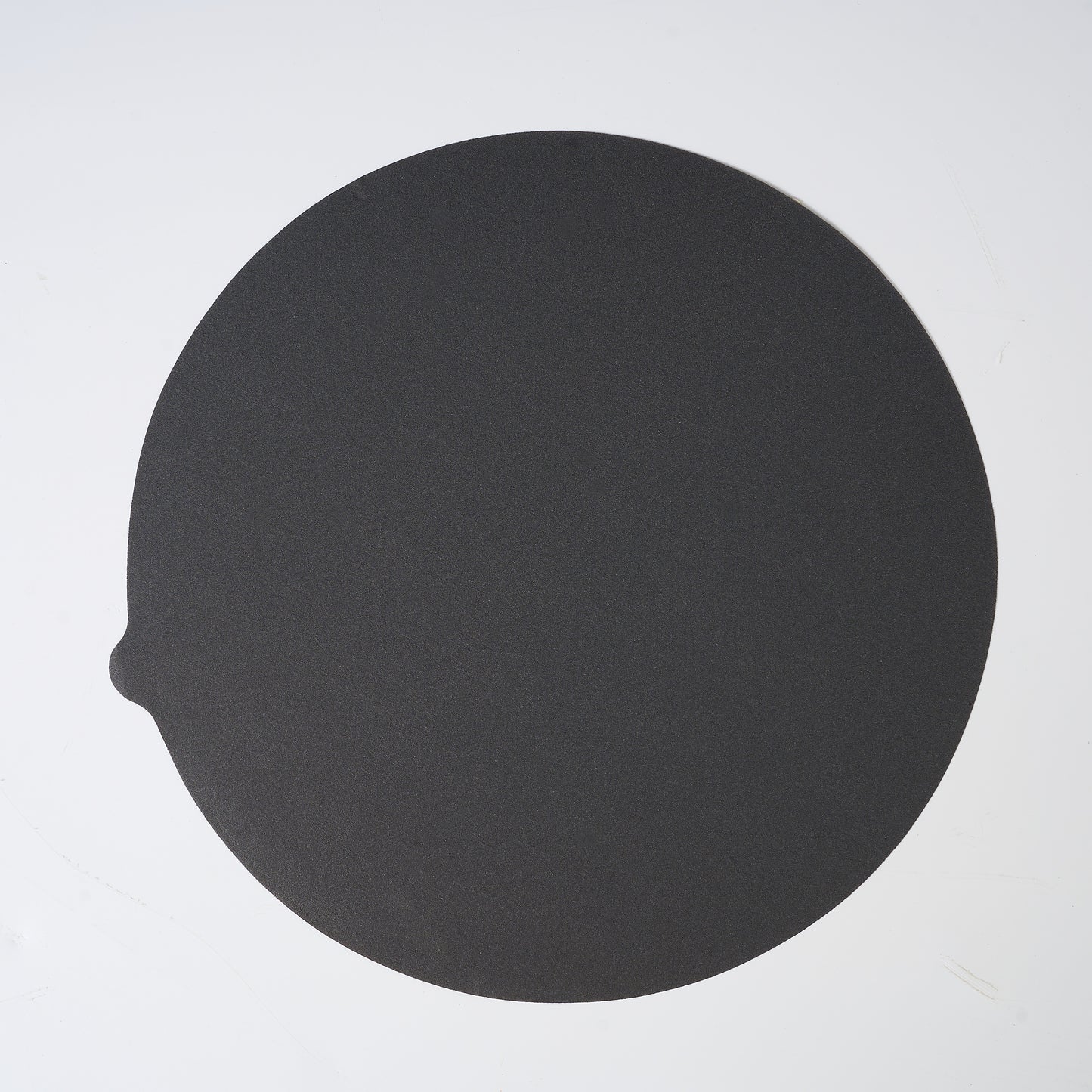

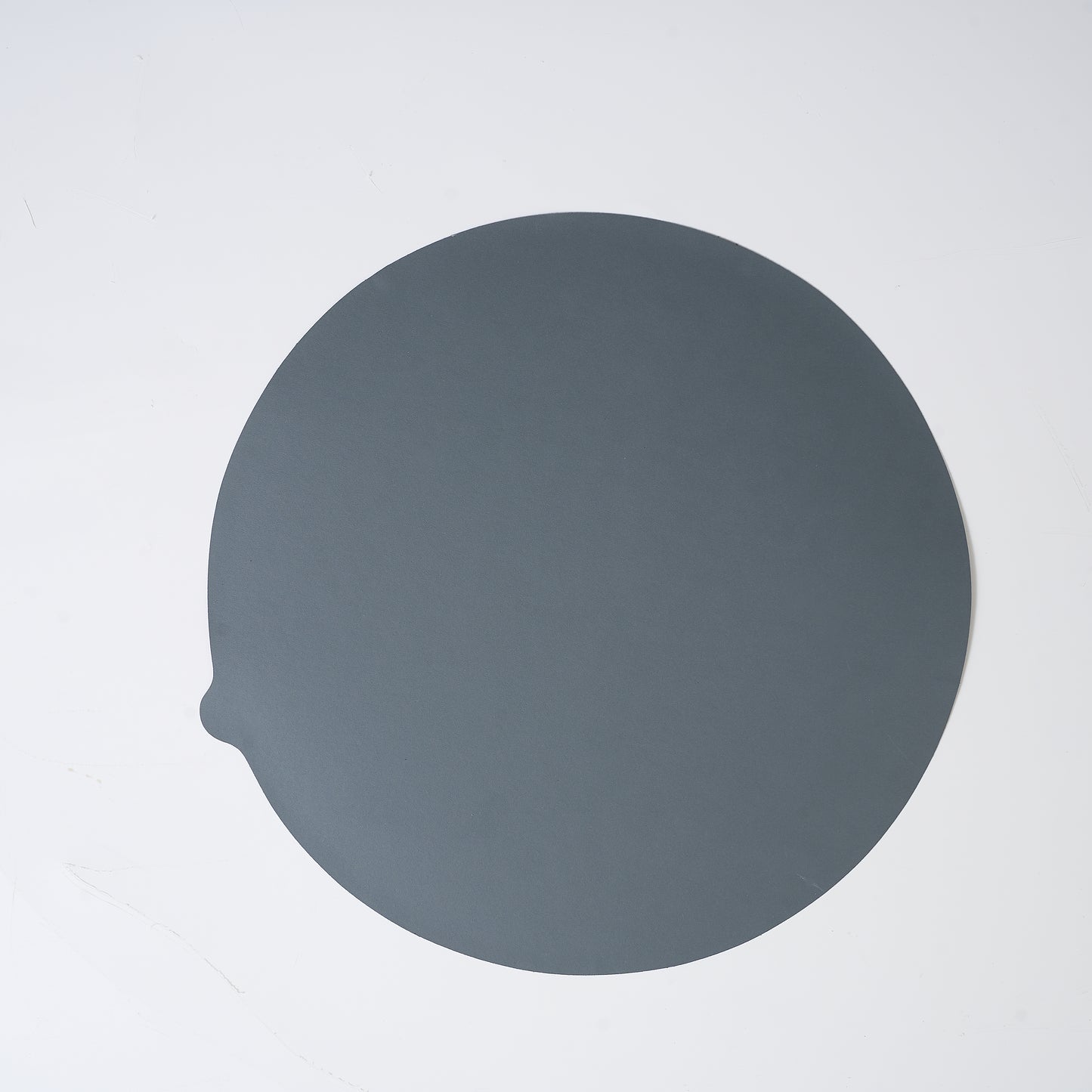

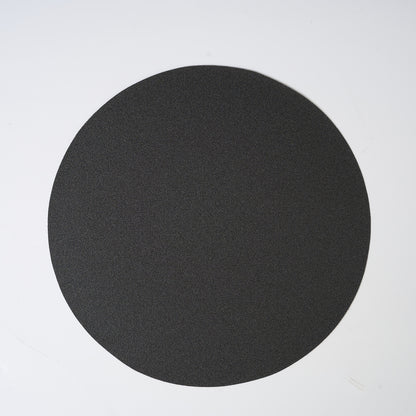

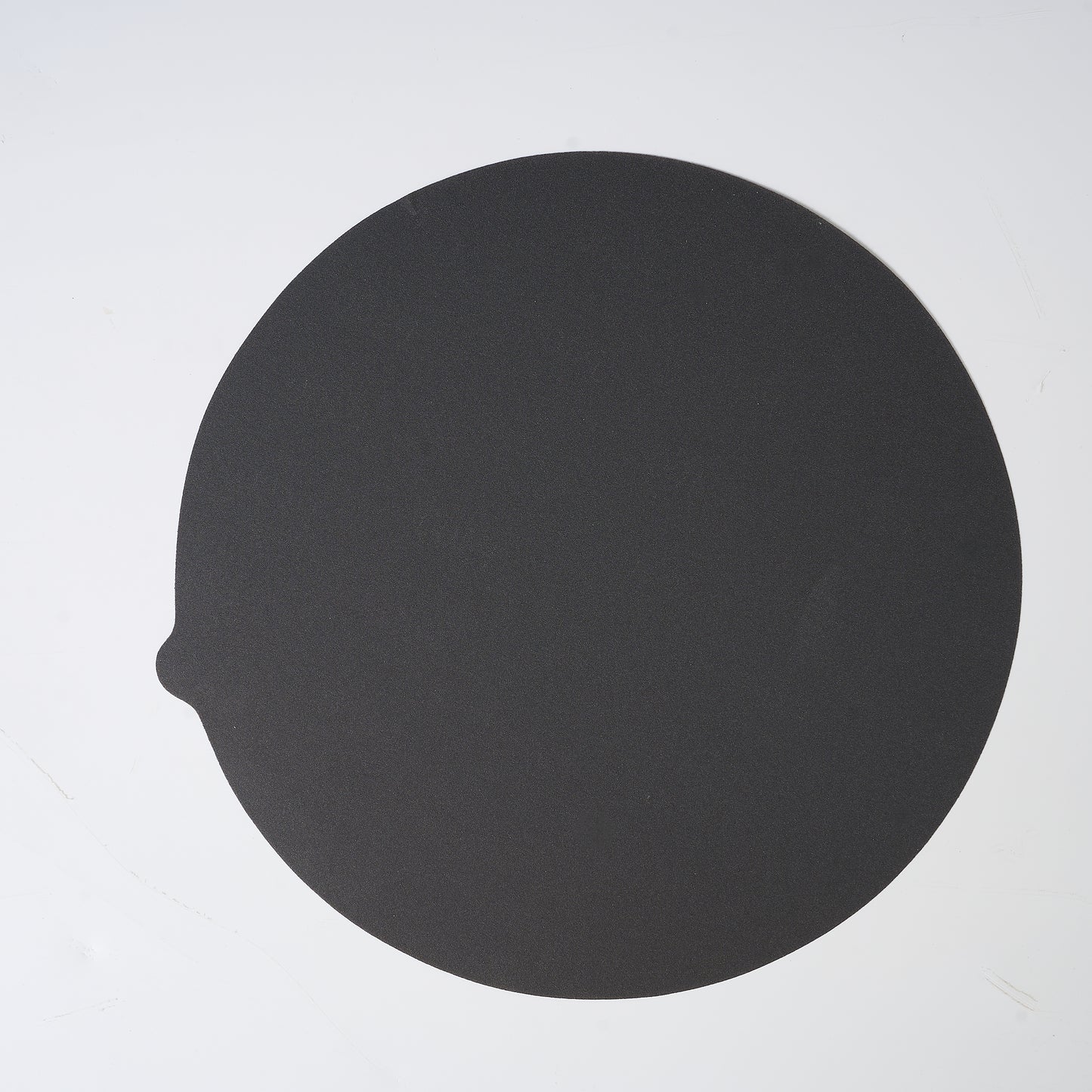

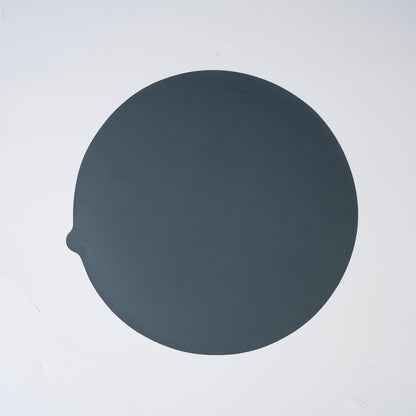

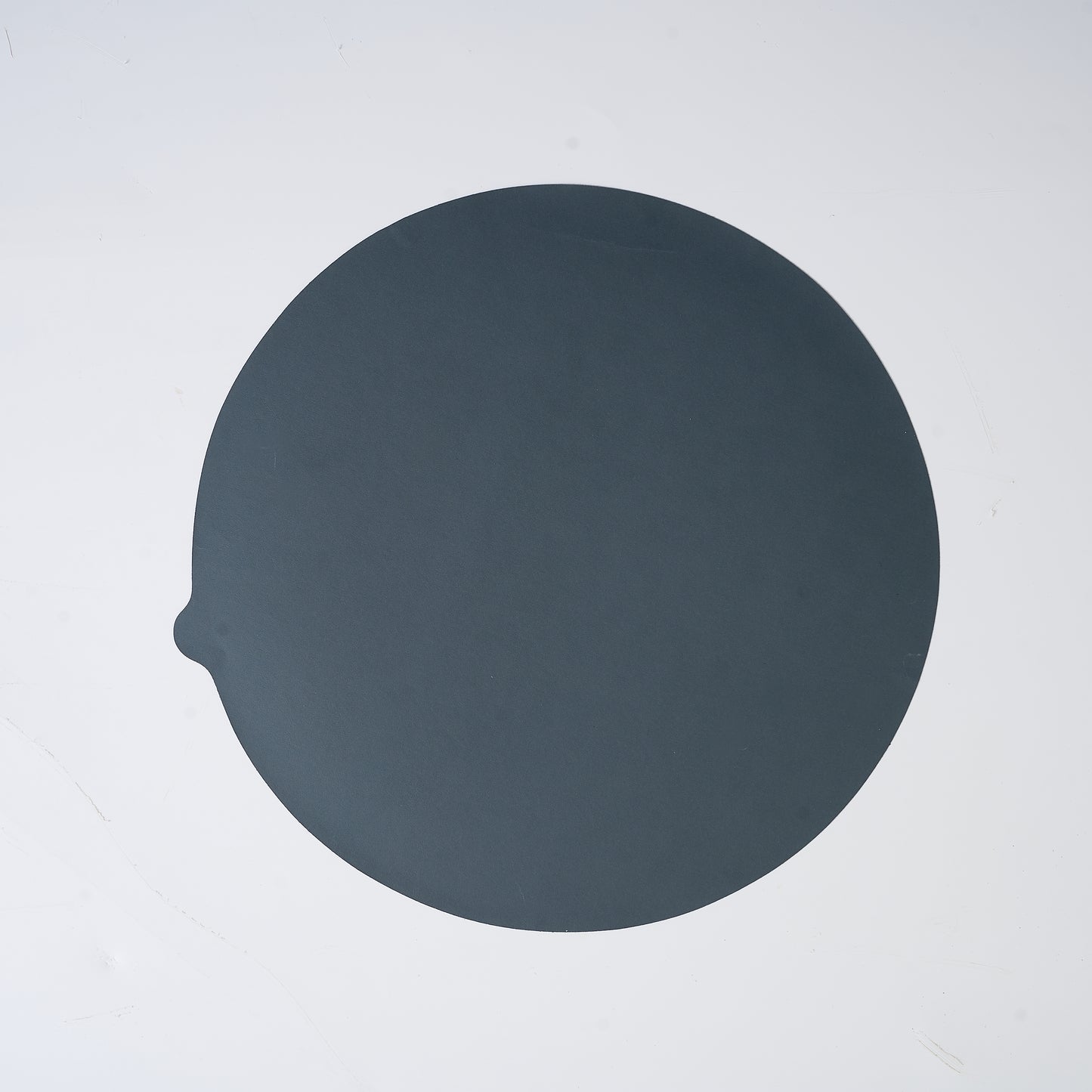

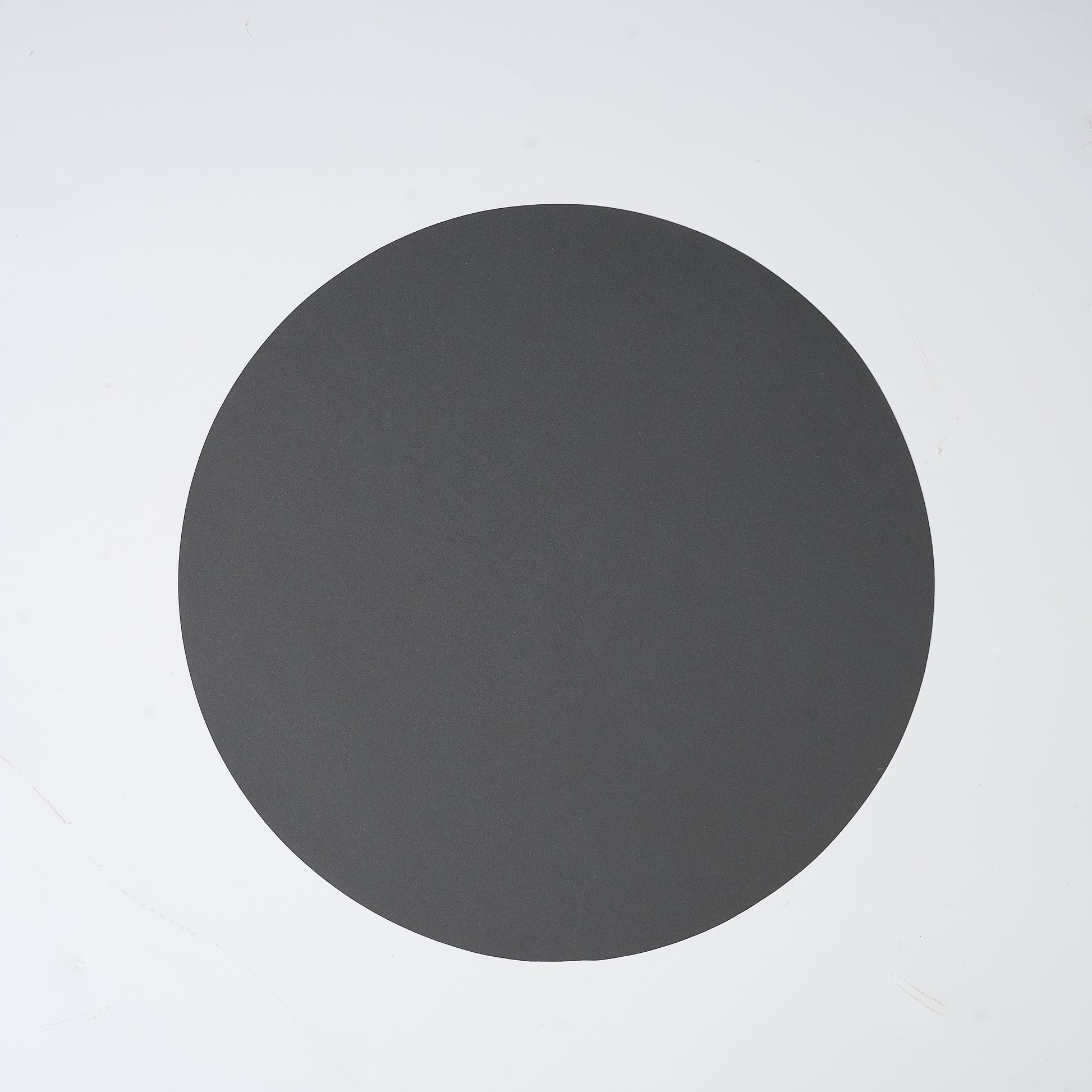

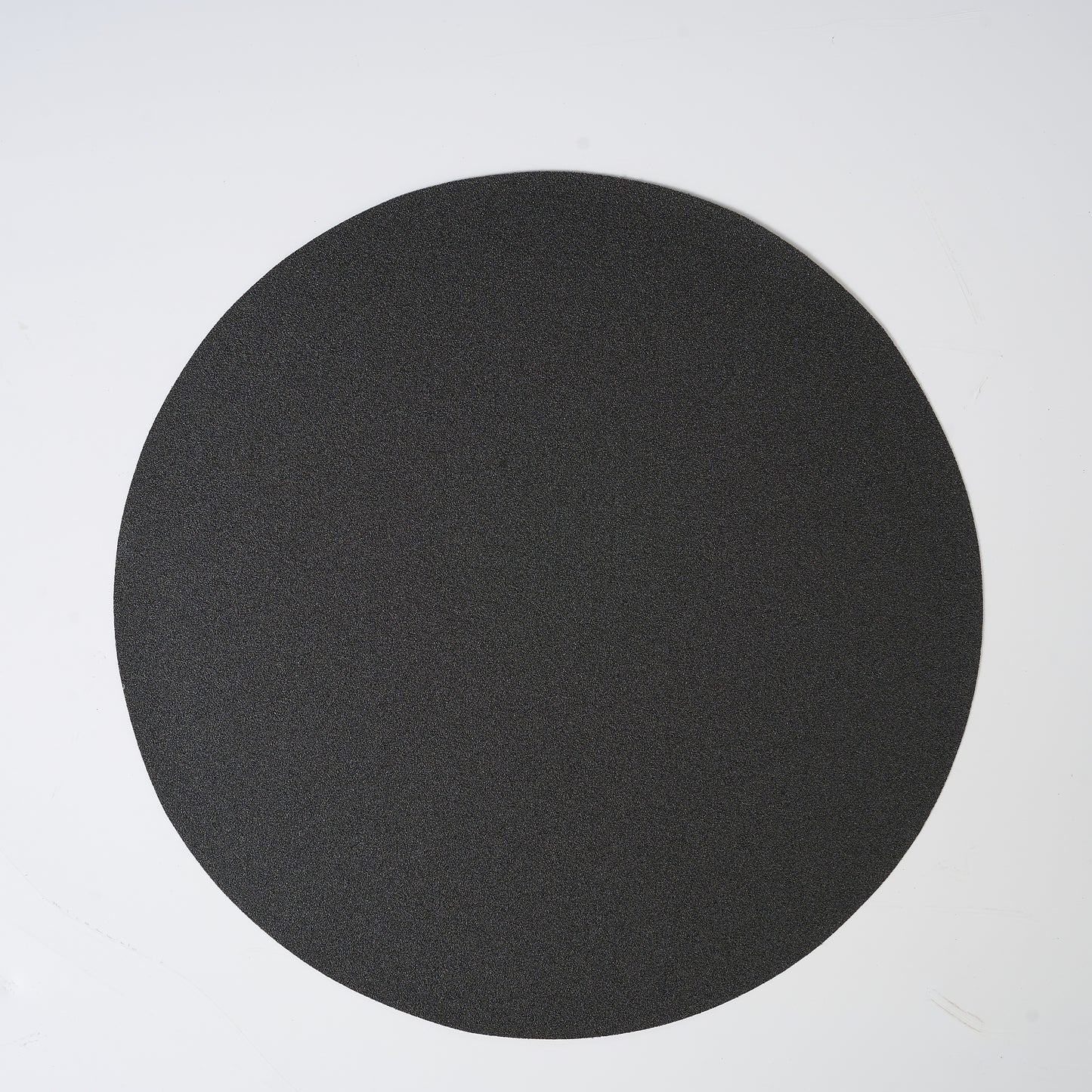

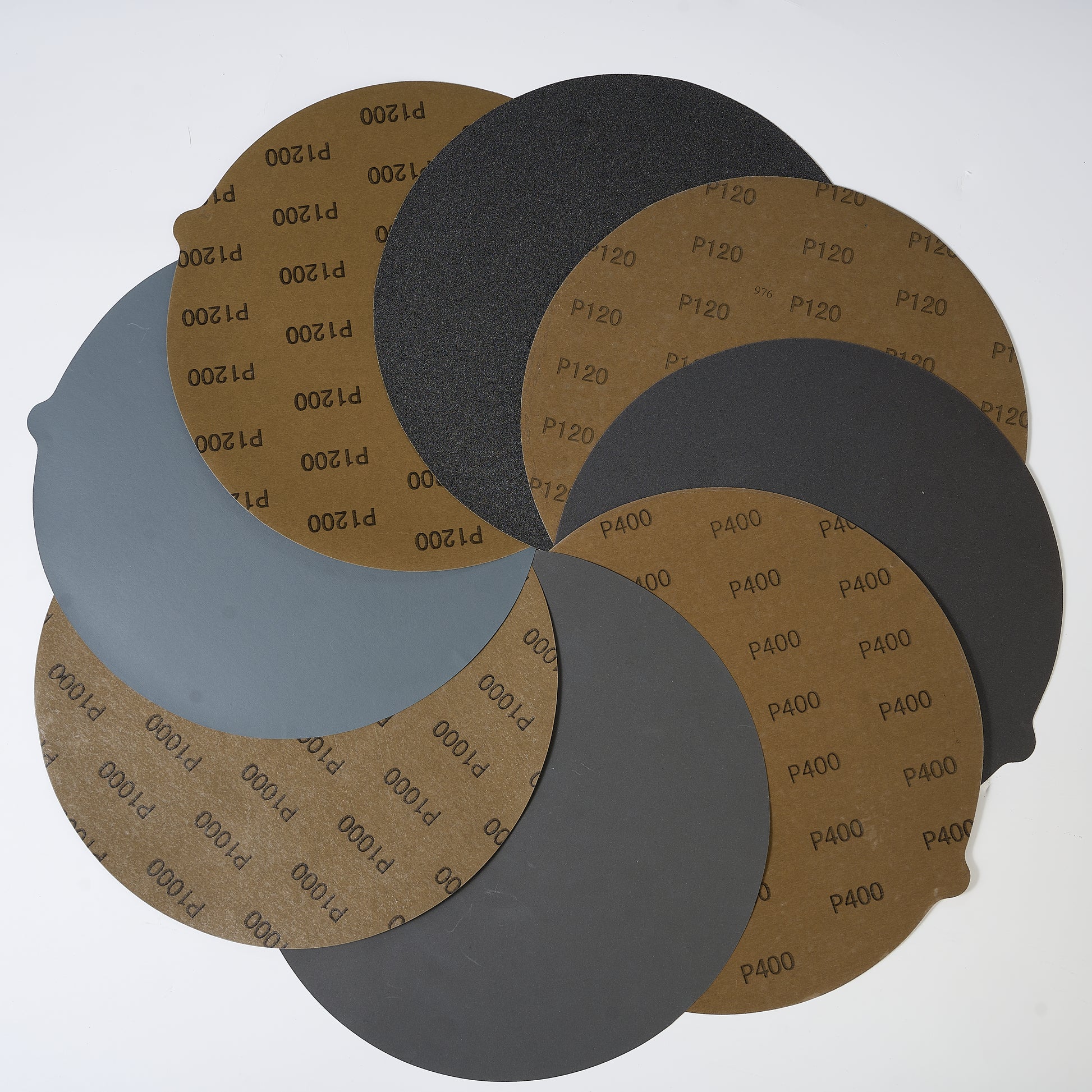

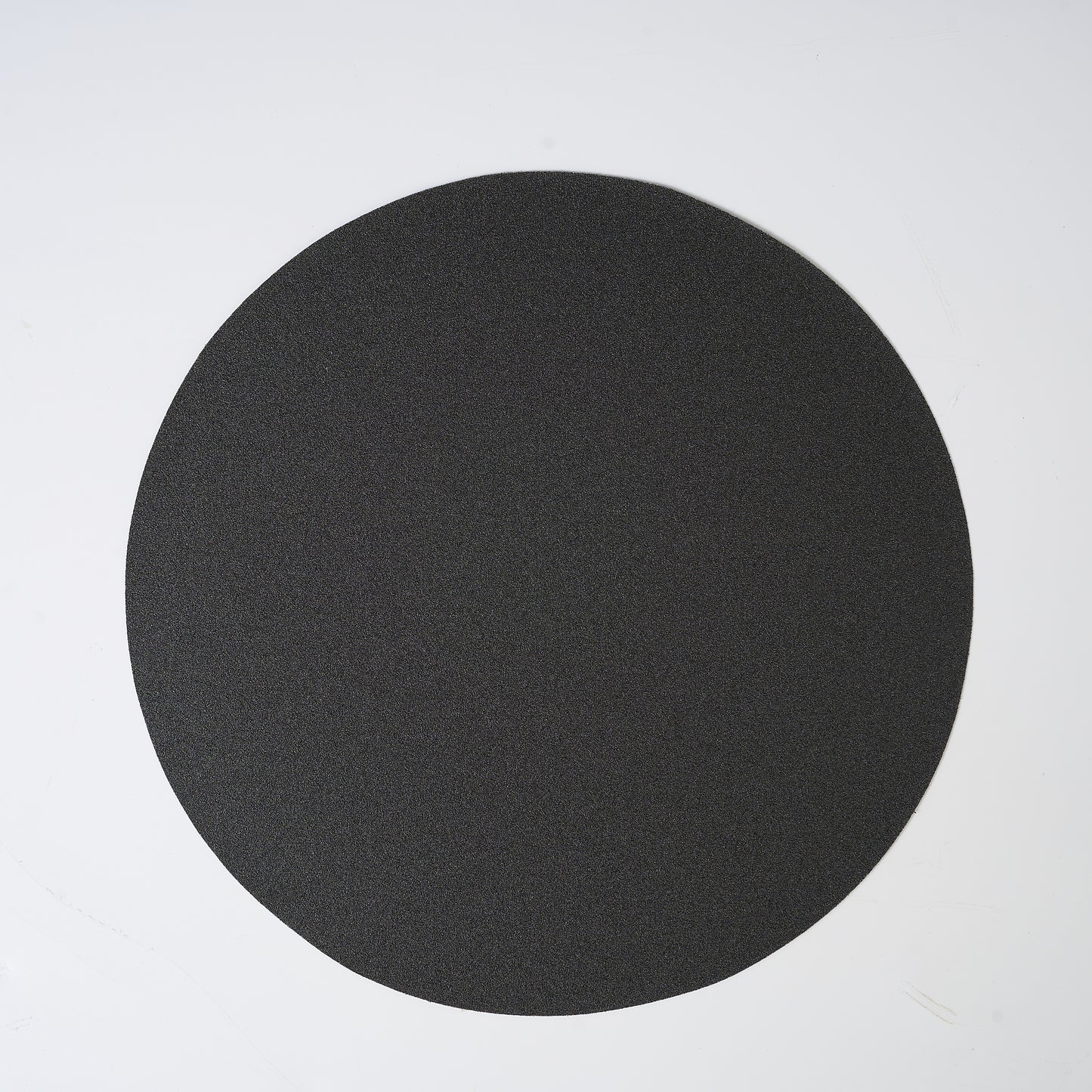

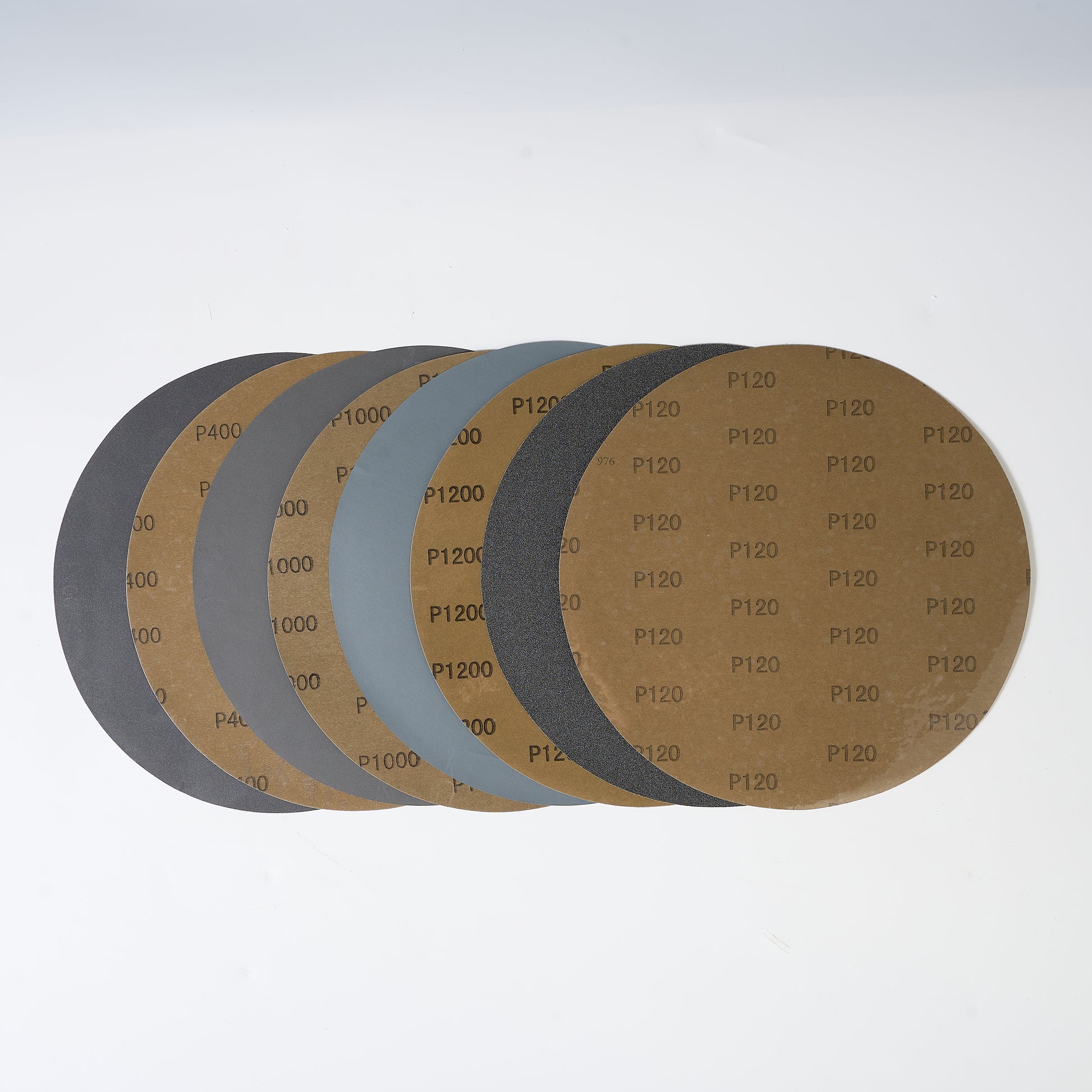

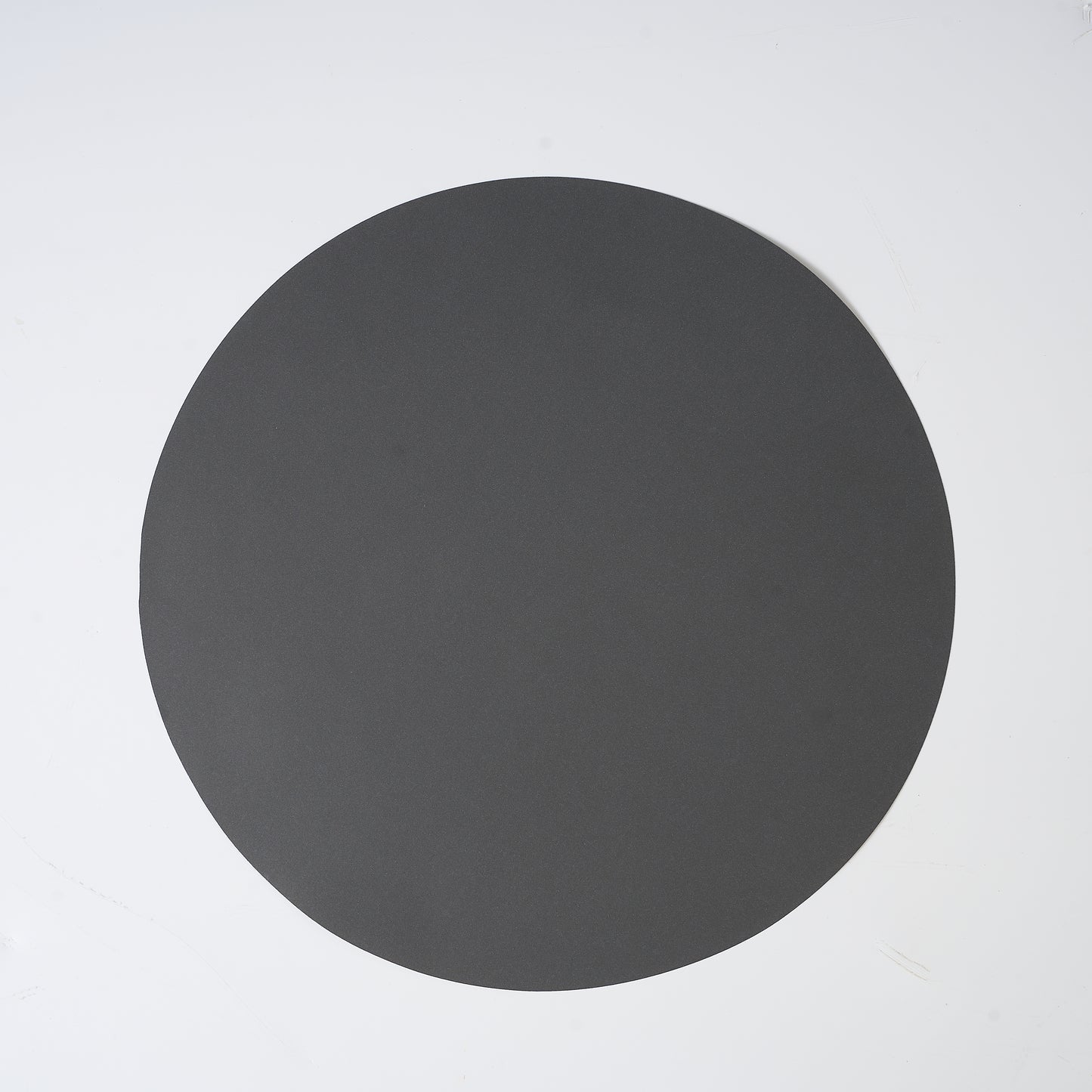

Silicon carbide abrasive sandpaper with adhesive backing is suitable for scenes with high requirements for flatness or use adhesive backing disks to quickly change abrasive sandpaper . (100pcs/package)
Standard (European) | Particle size | 200mm | 230mm | 250mm | 300mm |
P80 | 200μm | 40-200-200 | 40-200-230 | 40-200-250 | 40-200-300 |
P120 | 125μm | 40-125-200 | 40-125-230 | 40-125-250 | 40-125-300 |

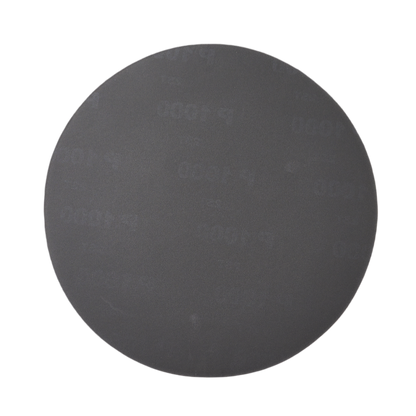

P180 | 82μm | 40-082-200 | 40-082-230 | 40-082-250 | 40-082-300 |
P240 | 58μm | 40-058-200 | 40-058-230 | 40-058-250 | 40-058-300 |
P320 | 46μm | 40-046-200 | 40-046-230 | 40-046-250 | 40-046-300 |
P400 | 35μm | 40-035-200 | 40-035-230 | 40-035-250 | 40-035-300 |
P600 | 26μm | 40-026-200 | 40-026-230 | 40-026-250 | 40-026-300 |
P800 | 22μm | 40-022-200 | 40-022-230 | 40-022-250 | 40-022-300 |
P1000 | 18μm | 40-018-200 | 40-018-230 | 40-018-250 | 40-018-300 |
P1200 | 15μm | 40-015-200 | 40-015-230 | 40-015-250 | 40-015-300 |
P1500 | 13μm | 40-013-200 | 40-013-230 | 40-013-250 | 40-013-300 |
P2000 | 10μm | 40-010-200 | 40-010-230 | 40-010-250 | 40-010-300 |

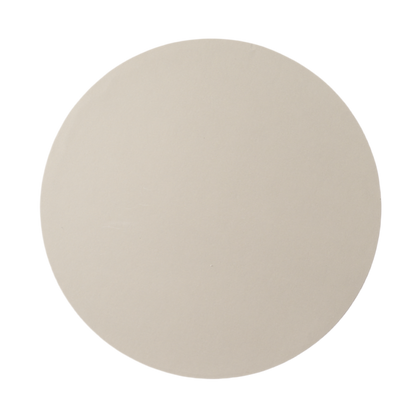

P2500 | 8μm | 40-008-200 | 40-008-230 | 40-008-250 | 40-008-300 |

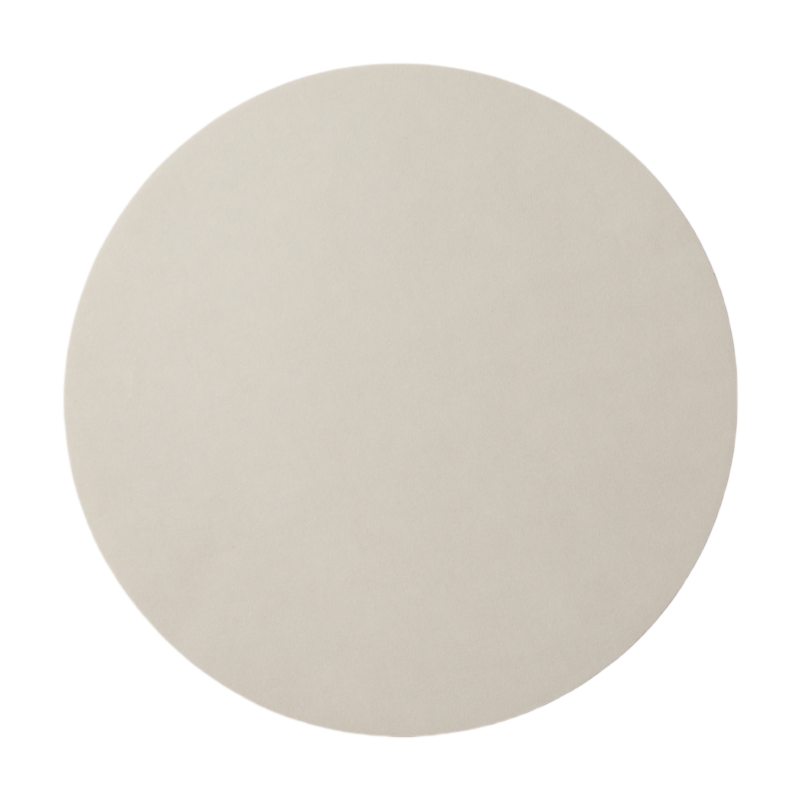

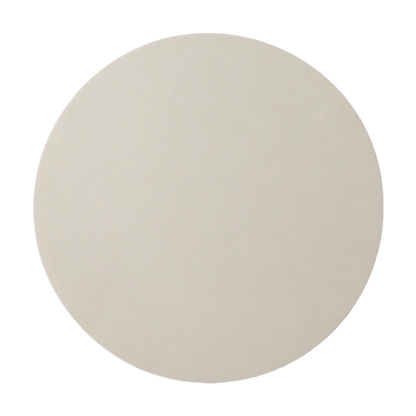

P4000 | 5μm | 40-005-200 | 40-005-230 | 40-005-250 | 40-005-300 |
